Product Overview
Handheld Oil Burner Diagnostic Tester
BurnerCheck V5
A portable diagnostic tool built for heating and oil burner technicians. BurnerCheck V5 tests photocells, solenoids, and capacitors in the field with clear PASS / WEAK / FAIL results on a large colour display.

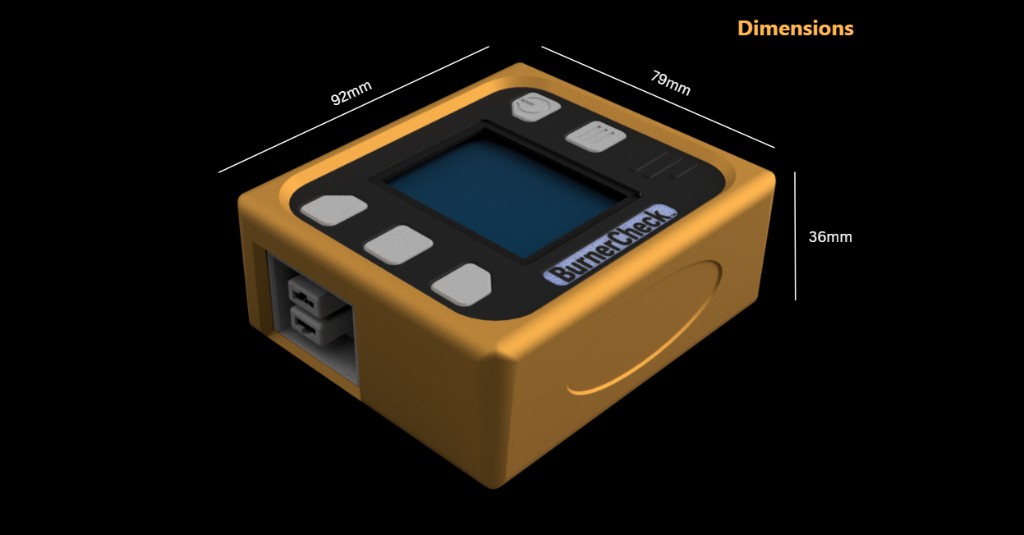

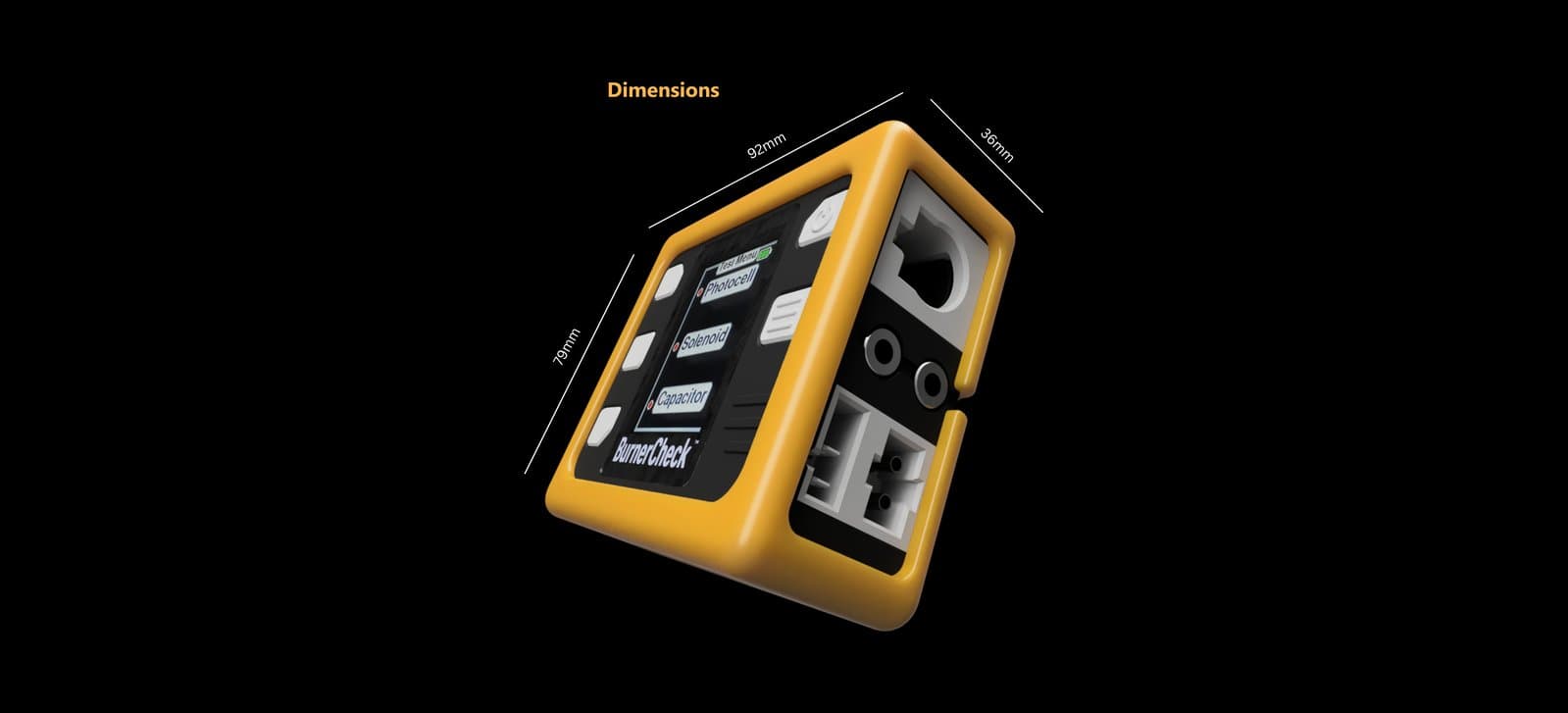

Product Dimensions
Click image for larger view
- Width
- 92 mm
- Height
- 79 mm
- Depth
- 36 mm
Technical Specifications
| Specification | Value |
|---|---|
| Display | 2.0" Colour TFT |
| Power Supply | 9V PP3 Alkaline Battery |
| Operating Voltage | 3.3V Internal Electronics |
| Battery Life | Approx. 1,500–2,000 tests or 2–3 years typical service* |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | −20°C to +60°C |
| Weight | 210 g (including battery) |
| Enclosure | Injection Moulded ABS |
| Screen Protection | Acrylic Protective Lens |
| Buttons & Outer Shell | High Consistency Silicone Rubber (HCR) |
| Firmware | V5 |
| Manufactured In | Ireland |
| Intended Use | Oil Burner Diagnostic Tester |
| For Use By | Qualified Heating Technicians |
* Battery life depends on battery quality, display brightness, ambient temperature and frequency of use.
Safety
Electrical Rating
- Internal operating voltage: 3.3 V
- Designed for low-voltage diagnostic testing only.
- Not intended for direct measurement of mains voltage (230 VAC).
Test Functions
PASS / WEAK / FAIL classifications are based on extensive testing of domestic oil burner components and are intended to provide clear diagnostic guidance for heating technicians.
Solenoid Testing
Coil resistance with Ohm readings
PASS / WEAK / FAIL
Capacitor Testing
Capacitance testing up to 15 µF
PASS / WEAK / FAIL

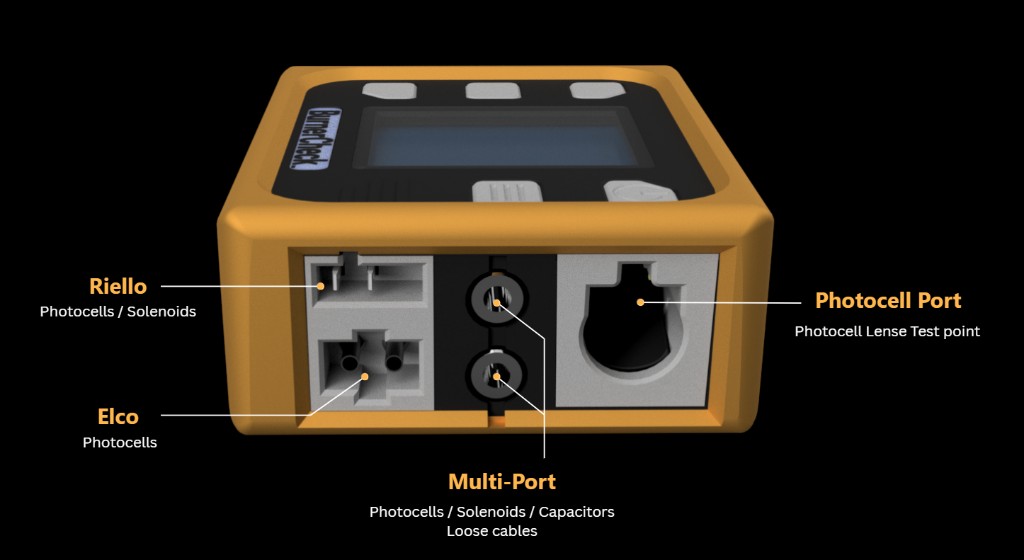

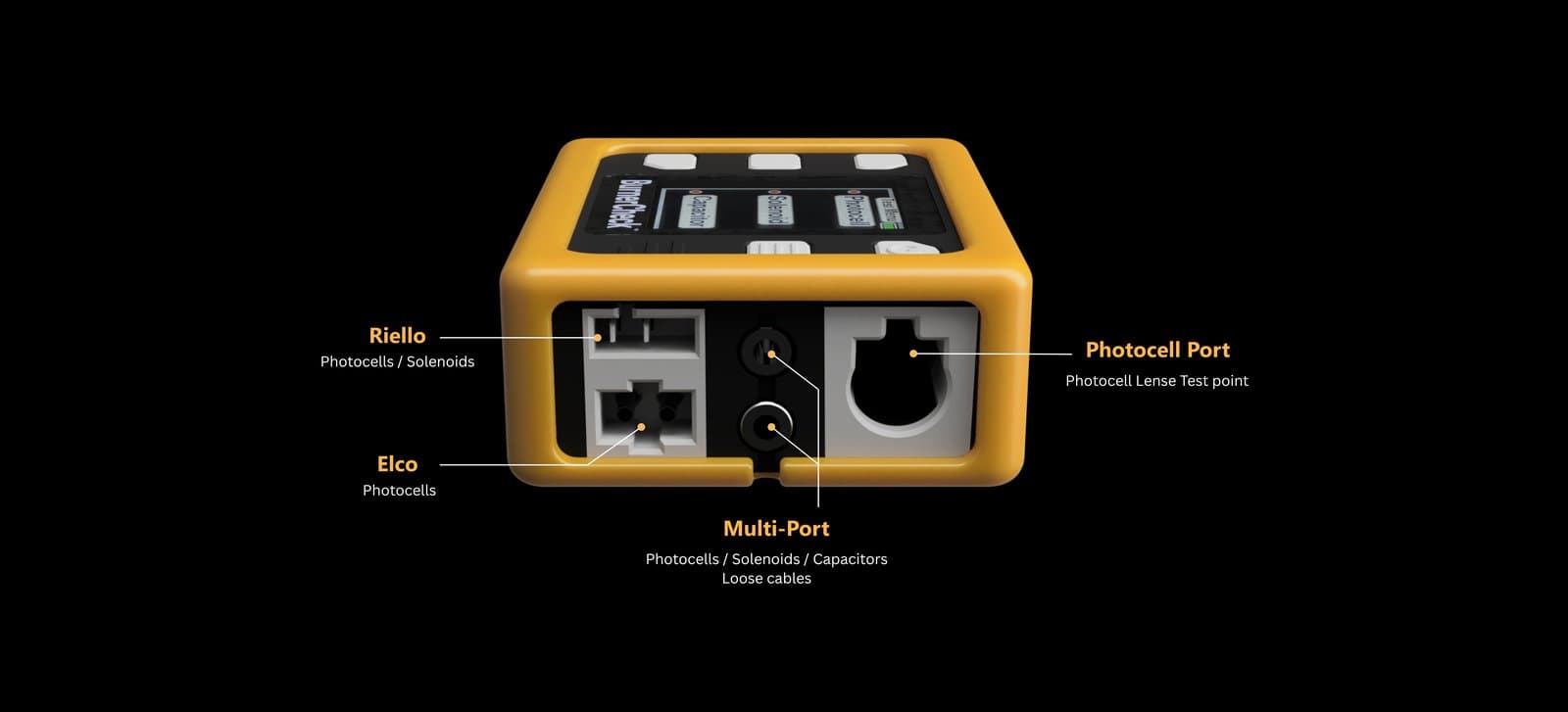

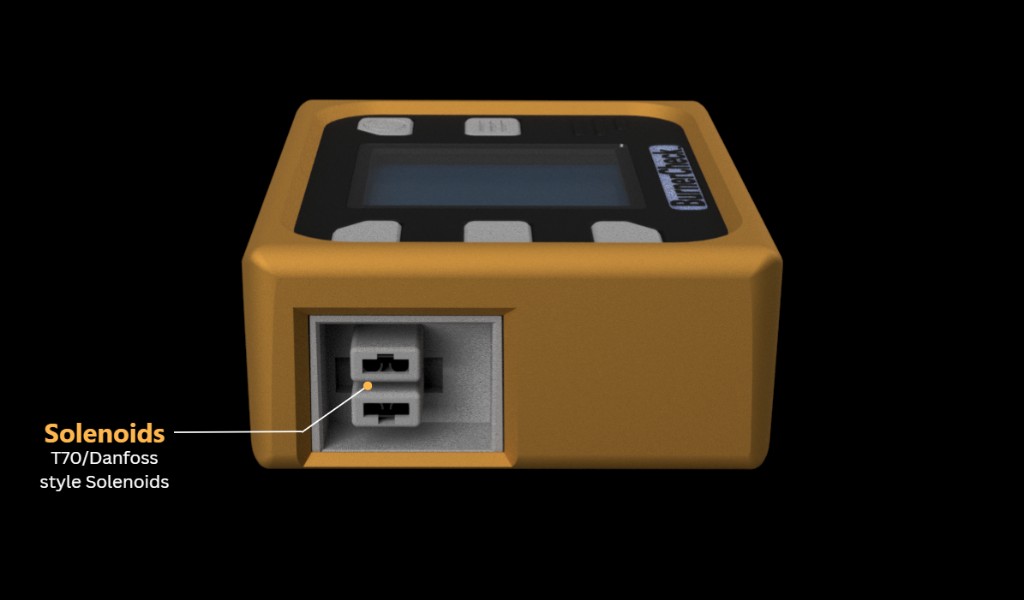

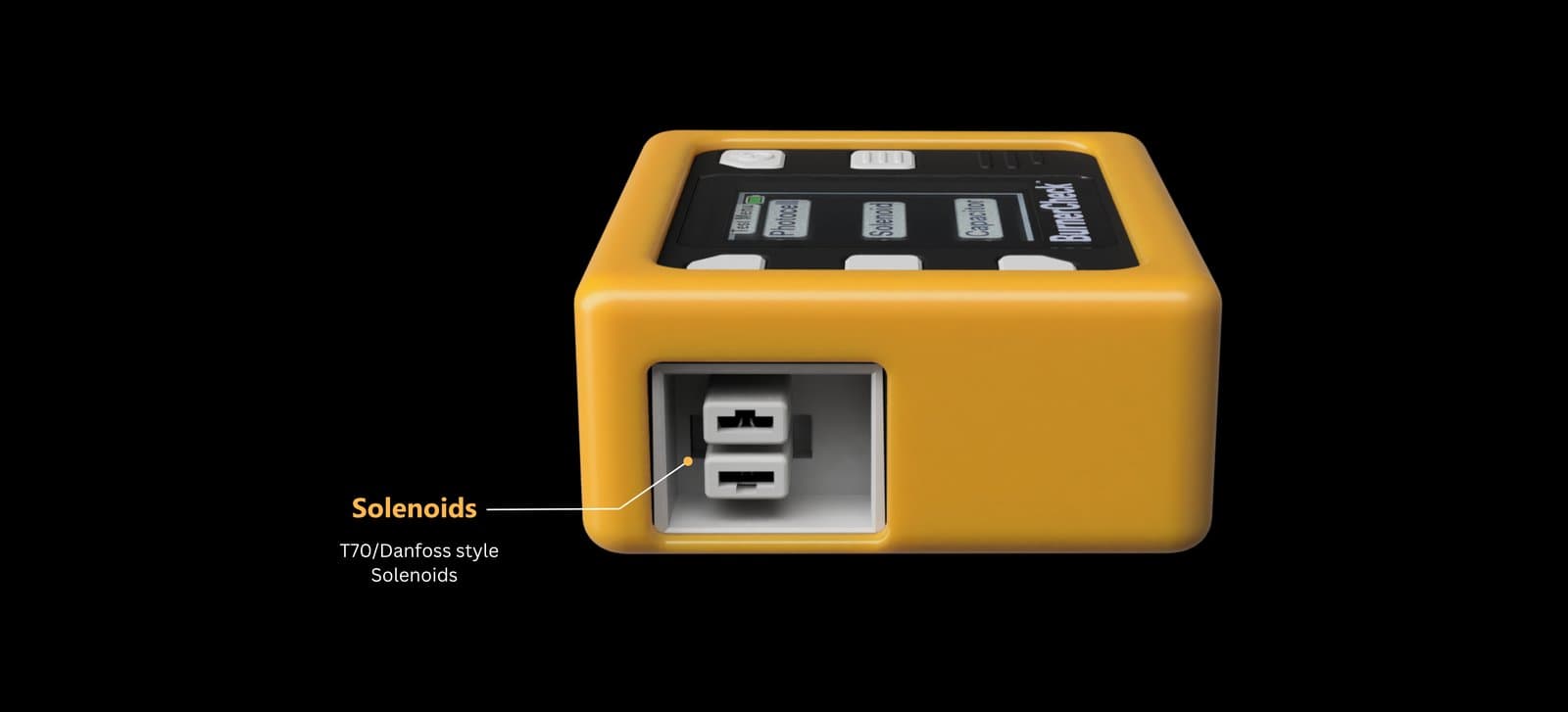

Connections
Click image for larger view
Learn How to Test Components
Watch our step-by-step video demonstrating how to connect and test photocells, solenoids and capacitors using BurnerCheck.
▶ Watch on YouTubeFeatures
- Fast testing
- Portable
- Large colour display
- Guided menu
- Designed for heating technicians
- Made in Ireland
